This network allows for the remote control and monitoring of IO devices using Ethernet / USB / RS485 / RS232 Modbus IO. It provides a reliable and secure connection between the IO devices and the remote user, allowing for real-time data access and control. This network is ideal for applications that require remote access to IO devices, such as industrial automation, process control, and monitoring.

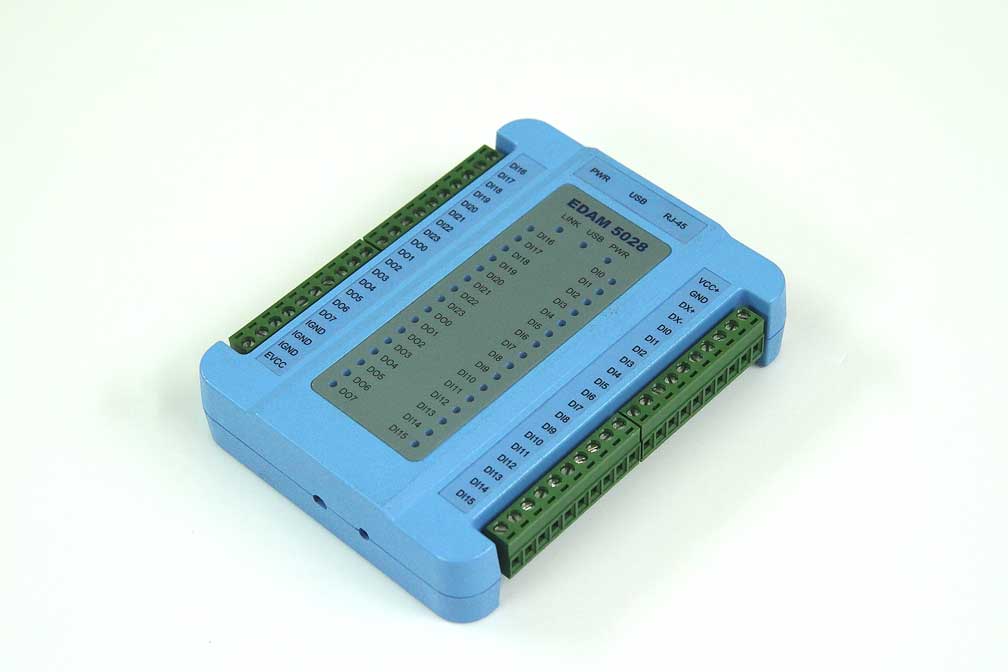

- Multi interface Ethernet / USB 2.0 / RS232 / RS485 photo-isolated 24*DI and 8*DO Modbus module
- CAN bus optional
- 10/100 Mbps Ethernet supports Modbus/TCP on TCP/IP and RTU or ASCII on UDP/IP
- USB 2.0 / RS232 / RS485 support RTU and ASCII commands
- user friendly status LEDs Power / USB / Ethernet link
- DI / DO isolation voltage 2kV
- USB powered (400mA max) or +10..30VDC ~1
- 5W
- DIN-Rail or wall mount
- dimensions 135*103
- 9*29
- 2mm
- InLog
- Width: 135 mm
- Height: 104 mm
- Tiefe: 29 mm
- Weight: 1 kg
- Manufacturer: www.inlog.com.tw
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
