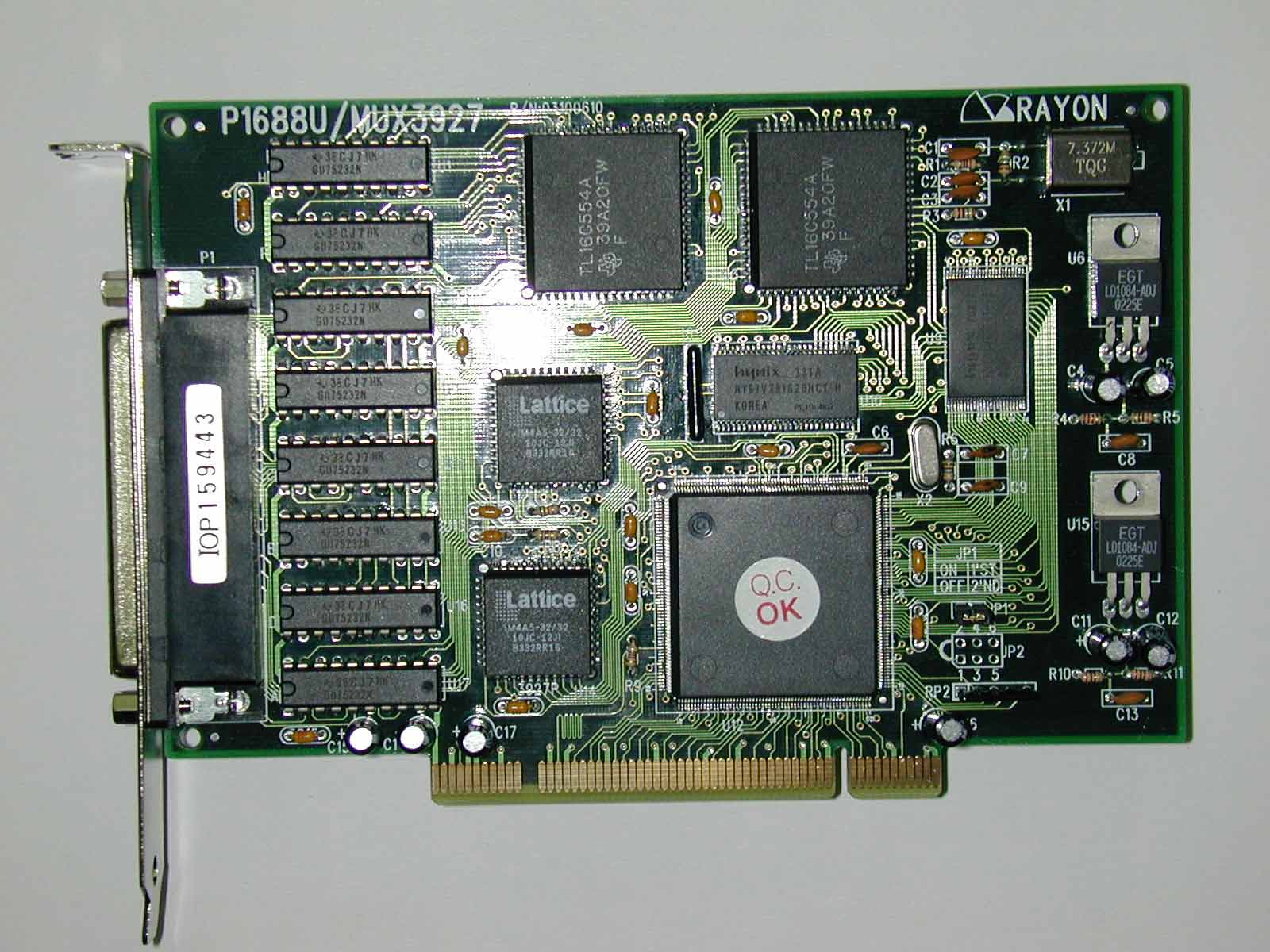

Product image of P1688U

P1688U - UPCI 8-port 3,3/5V 16MB 133MHz RISC max 230kBd CPU Card

EOL, call

Shipping Ask about this products

This PC Add-On Card is a great choice for communication needs. It includes RS232, RS485, IEEE, Serial 8-Port, and RS232 8-Port cards, allowing for a wide range of communication options. It is compatible with most PCs, and is easy to install and use. The card is reliable and offers great performance.

  • UPCI 3
  • 3V intelligent prozessor for 8-port serial card
  • 110..230400bps
  • 133MHz 3927 MIPS CPU
  • 16MByte buffer
  • each port can have up to 1MB receive buffer and 512kB transmit buffer
  • 128kByte memory map assigned by PCI BIOS
  • 3
  • 3V and 5V 33MHz PCI slot
  • DB62 female connector
  • includes connector cable DB62m to 8*DB9m (8*DB25m P1688U-25 on request)
  • max 2 cards/system in total 128 users
  • supports NT/2K/XP/Linux/SCO
  • 159*109mm
  • Rayon
  • Width: 159 mm
  • Height: 109 mm
  • Net weight: 0,9 kg
  • Weight: 0,9 kg
  • Manufacturer: www.rayon.eu
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000
