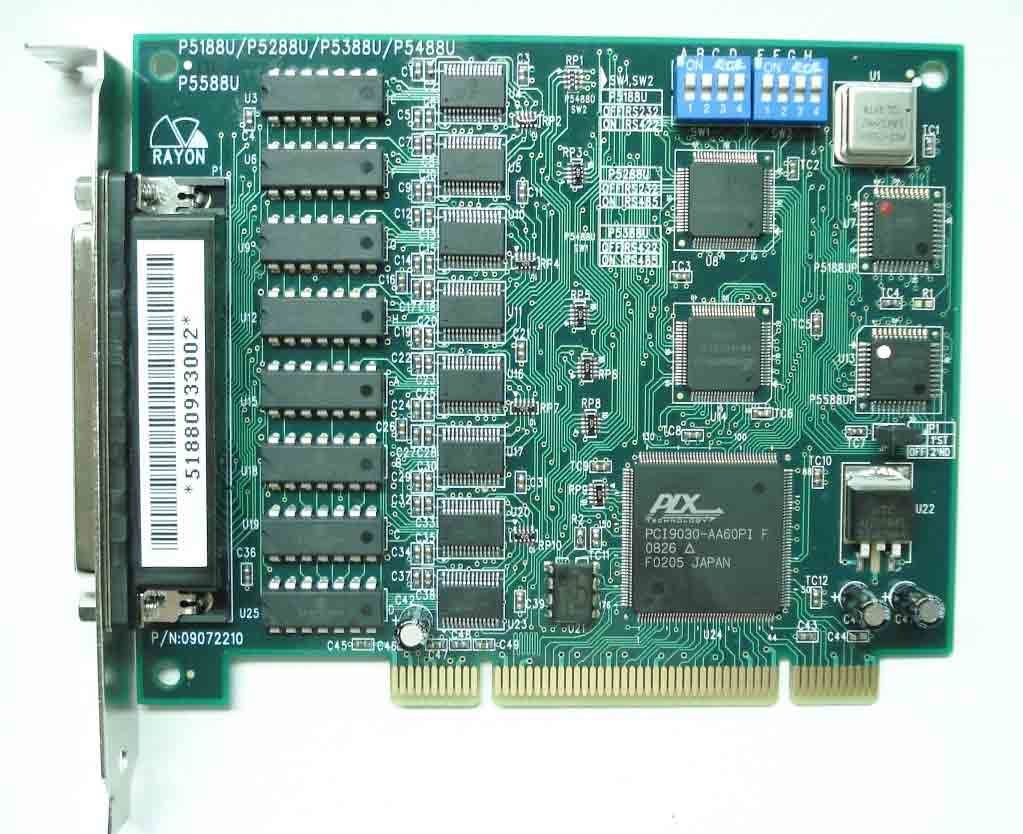

This PC Add-On Card is a communication card with 8-Port 5V Single Mixed, which is ideal for connecting to RS232, RS485, and IEEE Serial devices. It supports 8-Port Serial Communication and provides reliable data transmission. It is easy to install and provides high performance with low power consumption. This card is perfect for industrial automation, medical equipment, and other applications.
- 8x RS232/RS422 selectable===> suitable for full duplex application. They may need RS232 for local connection and RS422 for remote connection. But they can not confirm when to use local connection and when to use remote connection. (Over 15meter you can not confirm how far to connect)
- 1*sharable IRQ mapping and 64Byte and 8Byte I/O assigned by PCI BIOS
- 5V 33MHz PCI slot
- includes connector cable DB62m to 8*DB9m (8*DB25m P5388U-25 on request)
- max 2 cards/system
- single 5V power only
- supports DOS/Win95/98/ME/NT/Win2k/XP/Linux/SCO
-
15
- 24*10
- 67mm
- Rayon
- Width: 15 mm
- Height: 11 mm
- Weight: 2 kg
- Manufacturer: www.rayon.eu
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
