PC Add-On Cards are a type of device used to expand the capabilities of a personal computer. DIO Cards are a type of PC Add-On Card that provide digital input/output (DIO) capabilities. DIO Isolated Cards are a type of DIO Card that provide additional isolation to protect the PC from electrical noise. DIO Isolated PCI Cards are a type of DIO Isolated Card that are designed to fit into a PCI slot in the PC.

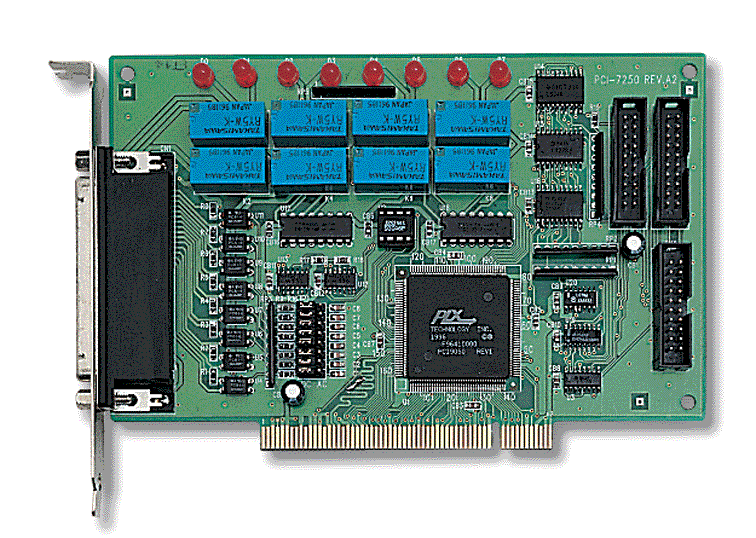

- PCI bus Digital IO card
- 8 Relay out 8 isolated in
- 4SPST (form A) and 4 SPDT (form C) Relay
- operate time 8ms release time 8ms
- max 32 Relay 32 isolated in with up to 3 PCI-7251
- 37pin D-type + 3*20pin flat cable connector
- use extension module PCI-7251 each for additional 8/8 channels up to total 32/32
- 162*102mm
- Adlink
- Width: 162 mm
- Height: 102 mm
- Net weight: 0,43 kg
- Weight: 1 kg
- Manufacturer: www.adlinktech.com
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
