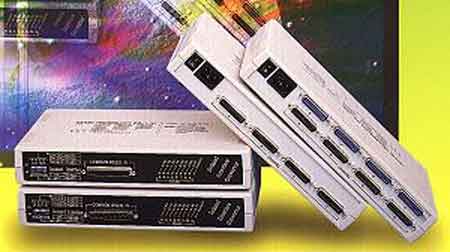

RS4232-4 - 4*RS232/RS422/RS485 (mixed use) isolated converter box

149,00 €

This is a set of PC Add-On Cards that provide communication capabilities for your computer. The cards include RS232, RS485, IEEE, PCI Serial 4-Port, and RS232 Mixed RS485 / RS422 4-Ports PCI, allowing you to connect to a variety of different devices. With these cards, you will be able to easily transfer data between your computer and other devices.

  • 4*RS232/RS422/RS485 isolated converter box
  • 4*independant outputs DB25m
  • each port ground isolated
  • each port independant selectable by DIP switch to RS232/422/485
  • jumper selectable impedance setting in RS422/RS485 mode
  • each port has TXD/RXD monitor LED
  • input connctor DB37m for 4*RS232
  • built in power supply 90..260VAC or -48VDC input
  • 298*135*55mm
  • Rayon
  • Width: 298 mm
  • Height: 135 mm
  • Tiefe: 55 mm
  • Weight: 3 kg
  • Manufacturer: www.rayon.eu
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000
Manual Special Usage for RS4232-4.pdf
PCI-Port-015.pdf
Datasheet No Pdfs available
