This product is a collection of PC add-on cards, communication cards, and converters that provide reliable serial data communication. The cards include RS232, RS485, IEEE, and USB cards, as well as converters for RS232, RS485, RS422, TTY20mA, and Serial Data Logger applications. These cards and converters are designed for reliable, high speed data communication and data logging, making them ideal for industrial, commercial, and medical applications.

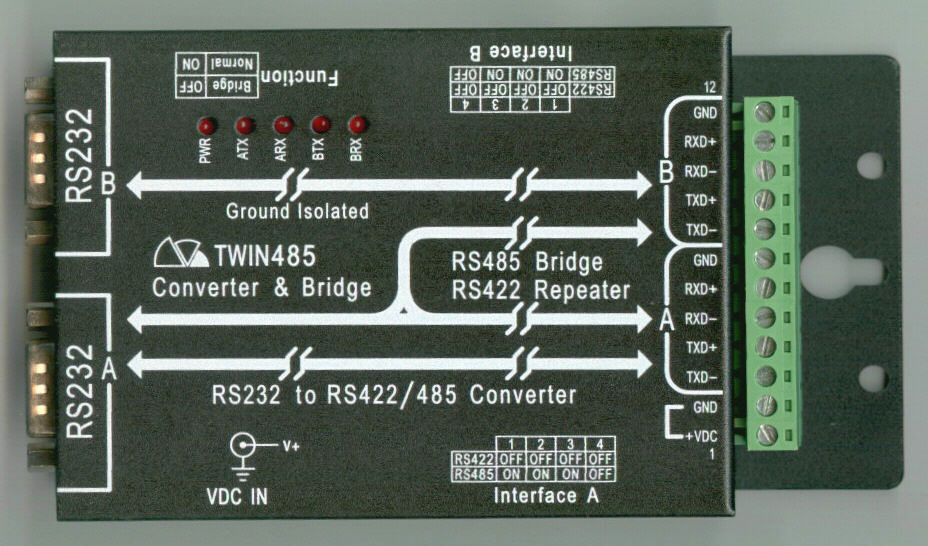

- RS232 brigde module and RS485/422 converter in external metal case
- for local and remote connection in one module
- one fully ground isolated RS232 to RS232
- one RS232 to RS485
- one RS232 to RS422
- supports auto data direction control on RS485
- supports RTS/CTS handshake on RS422
- 50...230400Bd
- connector: female DB9 (RS232side)
- male DB9 on isolated RS232
- plug-in screw terminal block (RS485 and RS422 side)
- power requirement 10..30V DC @2
- 5W
- 150*84*25mm
- Rayon
- Width: 84 mm
- Height: 150 mm
- Tiefe: 25 mm
- Weight: 2 kg
- Manufacturer: www.rayon.eu
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
