This product is a collection of PC add-on cards, communication cards, and converters that provide reliable serial data communication. The cards include RS232, RS485, IEEE, and USB cards, as well as converters for RS232, RS485, RS422, TTY20mA, and Serial Data Logger applications. These cards and converters are designed for reliable, high speed data communication and data logging, making them ideal for industrial, commercial, and medical applications.

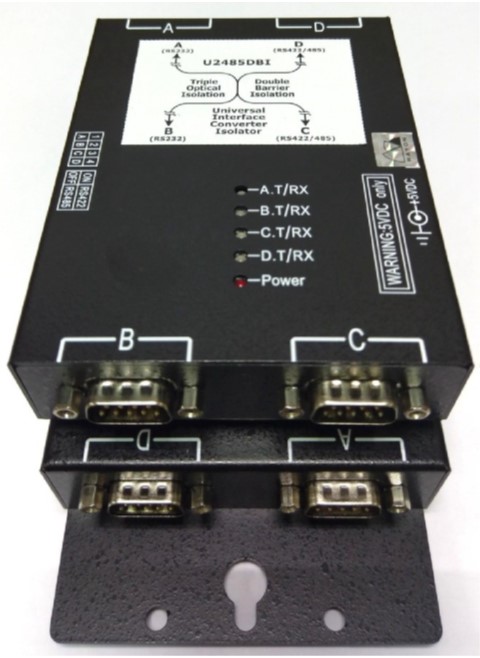

- RS-232 to RS-232 Ground Isolator
- RS-232 to RS-422 / RS-485 Interface Converter
- RS-422 / RS-485 to RS-422 / RS-485 Repeater or Bridge
- double barrier isolated festure between input and output connector
- triple way isolation to break any Ground loop and stray current
- full-duplex RS-422 or half-duplex RS-485 set by DIP switch
- data transmission indicated by LEDs
- 4* male DB9 connector
- power requirement 5VDC / typical 400mA
- operating temperature 0°C to 55°C
- 90*150*27mm
- Rayon
- Width: 84 mm
- Height: 150 mm
- Tiefe: 25 mm
- Weight: 2 kg
- Manufacturer: www.rayon.eu
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
