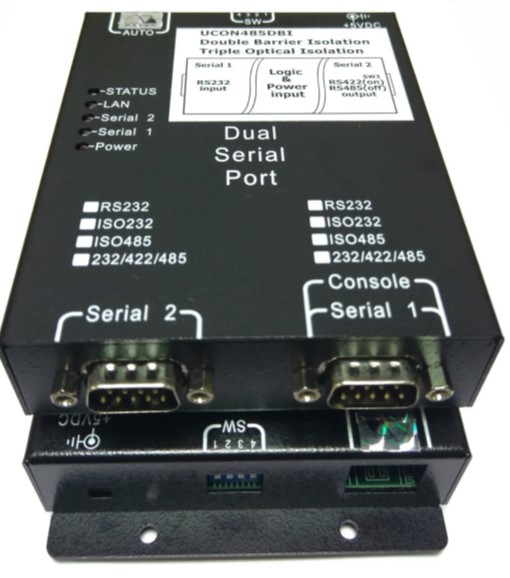

UCON485DBI - RS-232 to RS-422 / RS-485 double barrier isolated Converter

67,00 €

This product is a collection of PC add-on cards, communication cards, and converters that provide reliable serial data communication. The cards include RS232, RS485, IEEE, and USB cards, as well as converters for RS232, RS485, RS422, TTY20mA, and Serial Data Logger applications. These cards and converters are designed for reliable, high speed data communication and data logging, making them ideal for industrial, commercial, and medical applications.

  • 1* RS-232 input to 1* RS-422 / RS-485 output
  • input to output double barrier isolation
  • data transmission indicated by LEDs
  • easy to set as full-duplex RS-422 or half-duplex RS-485 interface via DIP switch
  • 2* male DB9 connector
  • power requirement 5VDC / typical 300mA
  • operating temperature 0°C to 55°C
  • 92*118*27mm
  • Rayon
  • Width: 84 mm
  • Height: 150 mm
  • Tiefe: 25 mm
  • Weight: 2 kg
  • Manufacturer: www.rayon.eu
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000
Manual No manuals available
Datasheet UCON485DBI_Catalog_en.pdf
