Network Ethernet IO is a technology that enables remote IO devices to communicate with each other using Modbus Analog protocol over an Ethernet network. It provides a reliable, cost-effective way to connect remote IO devices to a network, enabling remote monitoring and control of devices.

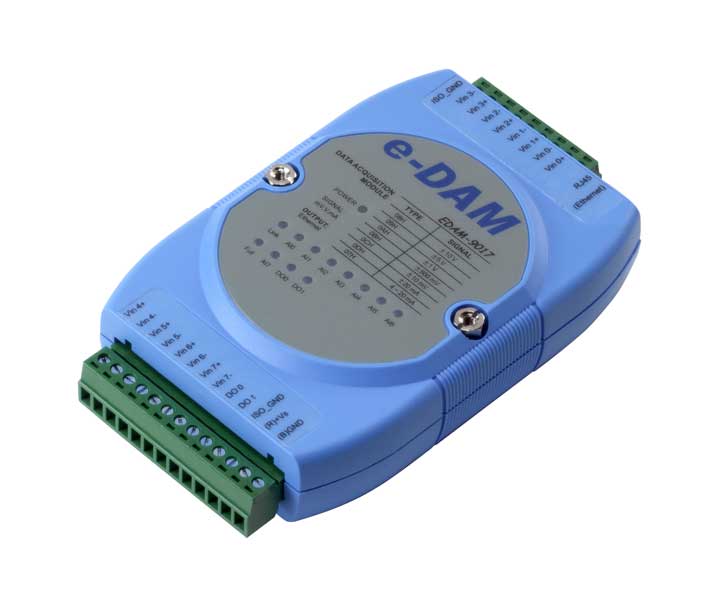

- Ethernet 10/100TX 8*AD differential 2*DO Modbus module
- standard Modbus RTU protocol
- protocols Modbus/TCP TCP/IP UDP ICMP ARP
- user friendly status LEDs Power and Ethernet link
- 8 channel AD differential bipolar input (±0
- 015/0
- 5/5
- 0/10V and 0/4..20mA by jumper)
- 16-Bit 10 samples/s
- accuracy 0
- 05% or better
- +10..30VDC ~2
- 2W
- DIN-Rail or wall mount
- dimensions 122*71
- 6*25mm
- InLog
- Width: 122 mm
- Height: 72 mm
- Tiefe: 25 mm
- Weight: 1 kg
- Manufacturer: www.inlog.com.tw
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
